Description

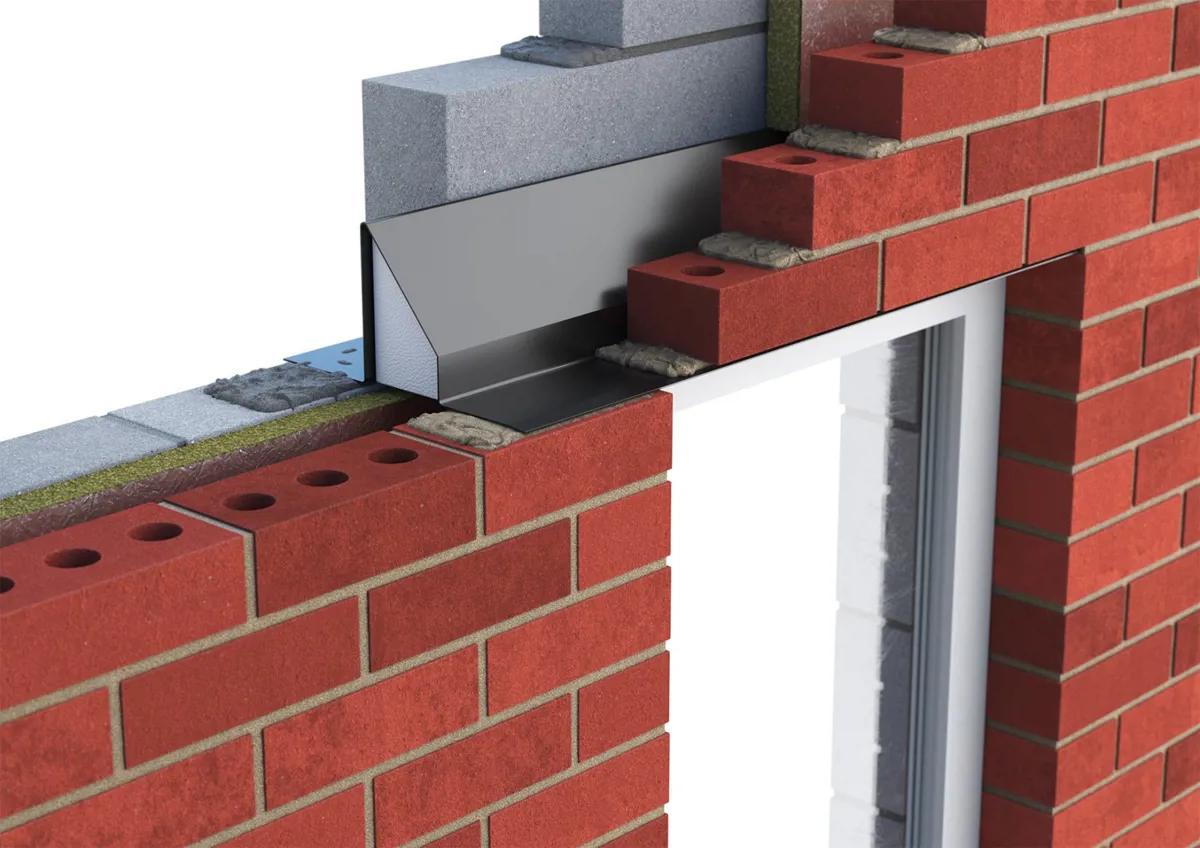

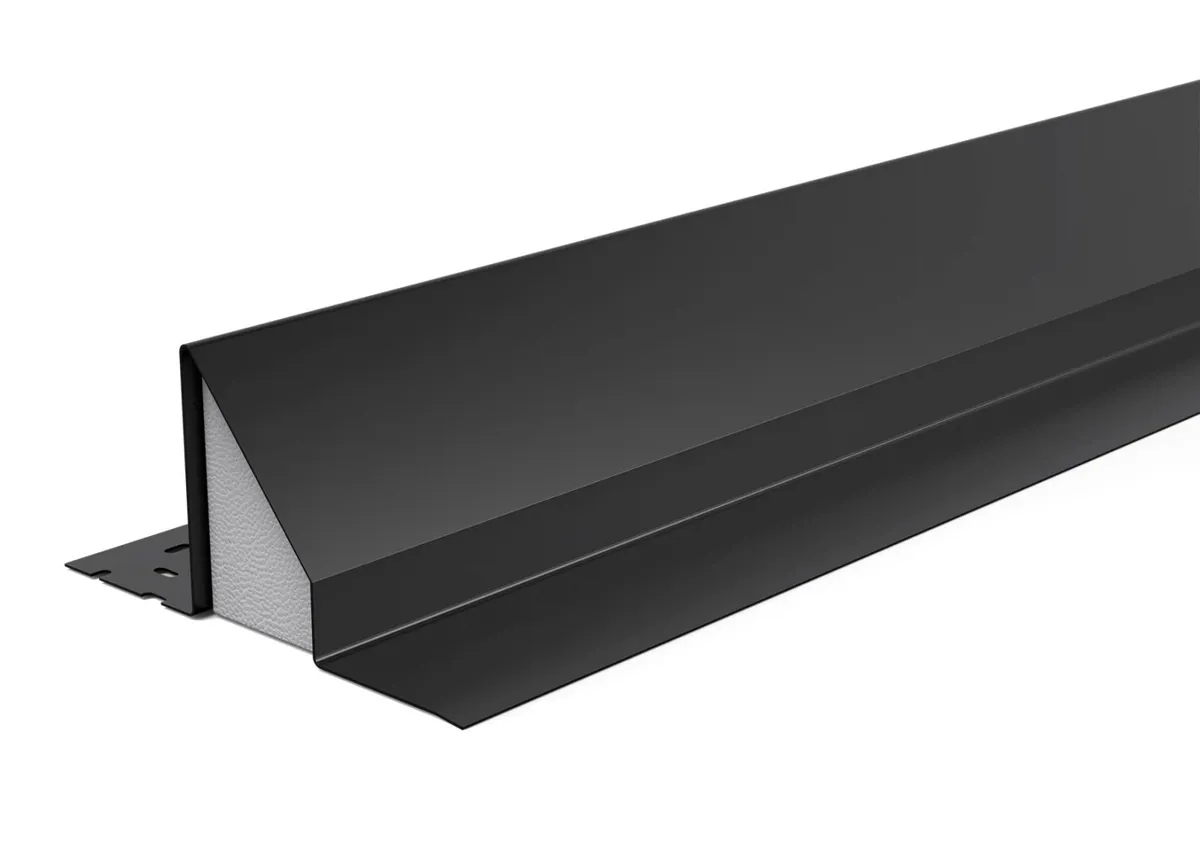

The Catnic CG90/100 1200mm is an easy-to-use open back profile lintel which allows masonry to be built up continuously on both outer and inner leaf.
The CG range is formed from galvanised steel, then powder coated.
Featuring Duplex corrosion protection which ensures optimum durability and longevity.
Built-in DPC - Saves time in construction and means cavity is easy to clean without risk of damage to DPC.
Integral Plaster key - With staggered slots applied to the inner flange and ribbed underside of insulation.

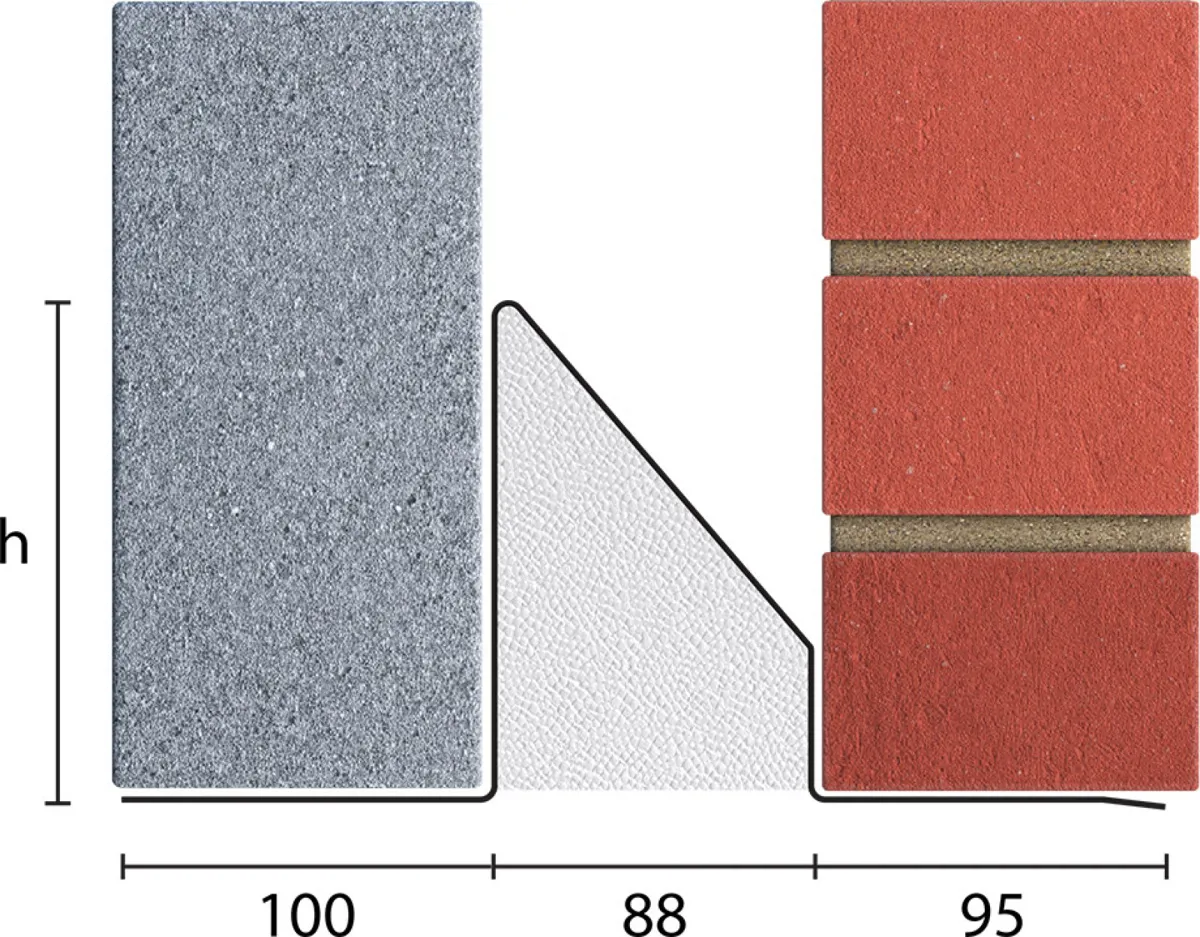

Continuous insulation - Maximising thermal efficiency, minimising cold bridgingFor 90-105mm Cavity, 100-115mm Inner Leaf
Features:
• Triangulated masonry load.
• Supporting uniformly distributed masonry load.
• Supporting uniformly distributed timber floor and roof loads.
• Suitable for fair faced inner leaf masonry.
For Catnic lintel enquiries and availability please contact our Civils & Lintel expert Vaughan at [email protected] / 023 8038 5381.
Specifications
|
Available Sizes
|
900 - 3000 mm
|
|
Brand
|
Catnic
|
|
Cavity Size
|
90 - 105 mm
|
|
Depth
|
283 mm
|
|
Finish
|
Powder coated
|
|
Height
|
140mm
|
|
Inner Leaf
|
100 - 115 mm
|
|
Insulation
|
Expanded Polystyrene
|
|
Lintel Type
|
Cavity Wall Lintels
|
|
Load
|
Standard Duty
|
|
Material
|
Galvanised Steel
|
|
Model
|
CG90/1001200
|
|
Product Type
|
Steel Lintels
|
|
SWL
|
15kN
|
|
Wall Construction
|
Cavity Wall
|
|
Weight
|
7.32kg
|
