Description

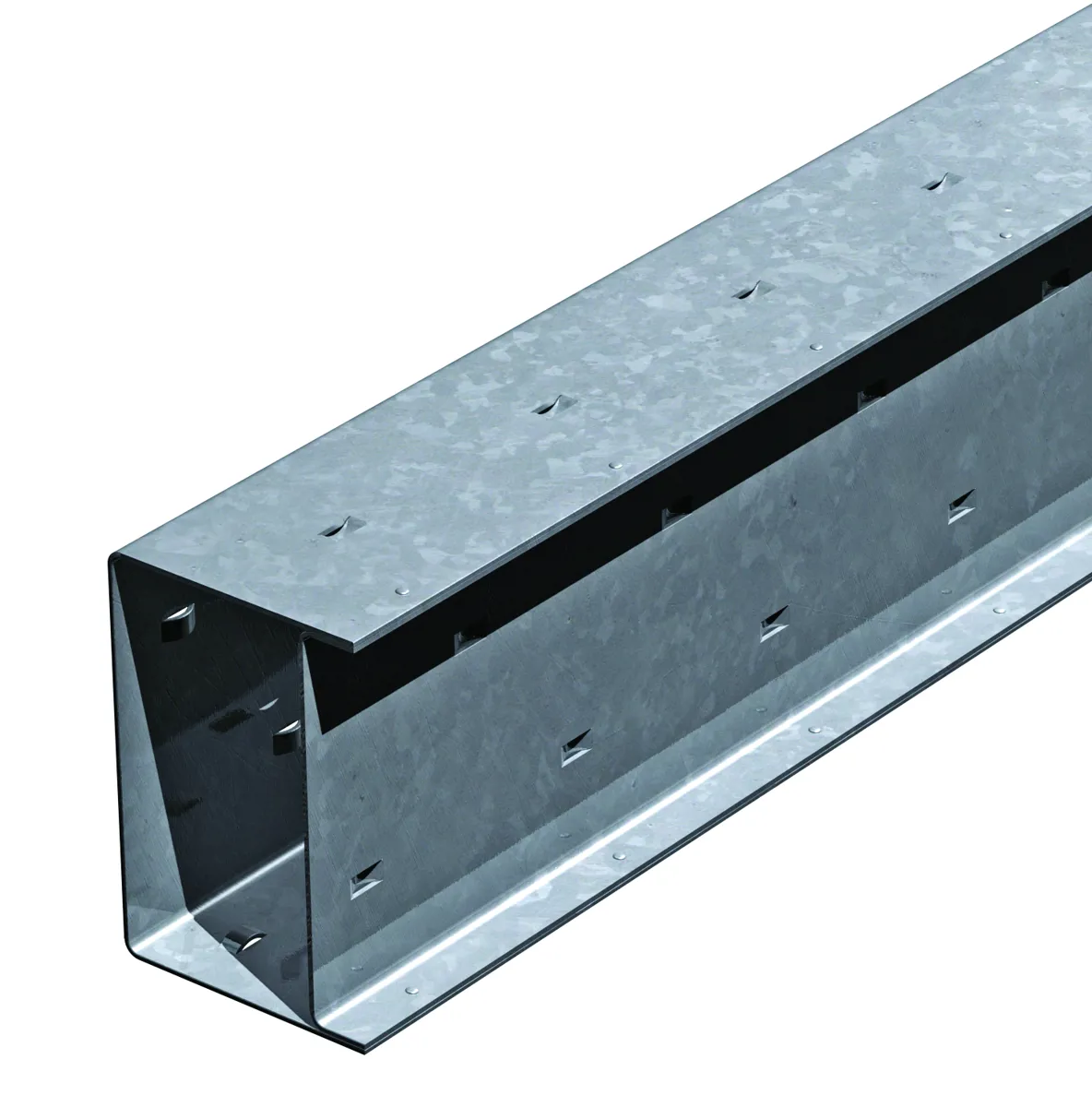

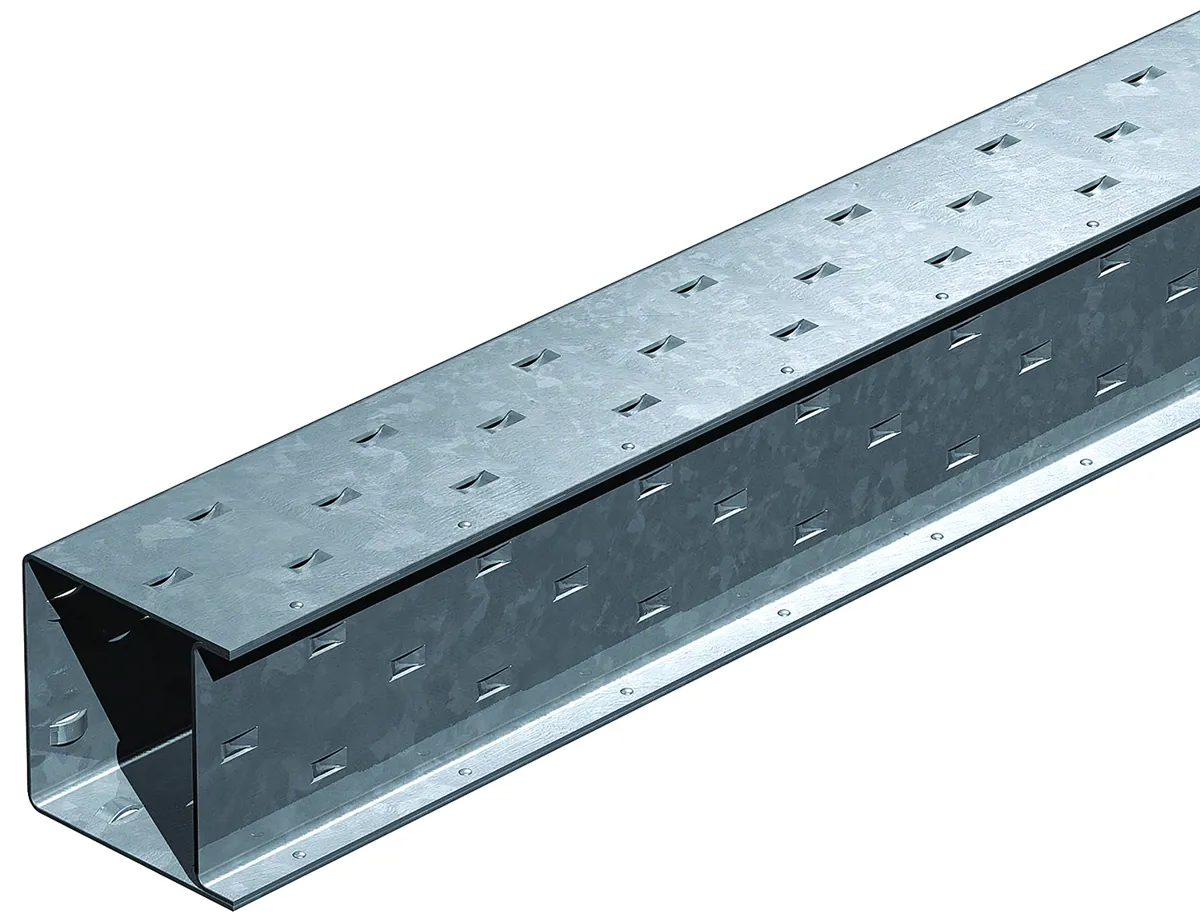

Make sure any loadbearing walls remain safely held in place with a Birtley box lintel. Itās ideal for use as a structural horizontal support in an opening in a wall or between two vertical supports. Thanks to its strength and reliability, the Birtley SB100 internal wall box lintel is often used in a buildingās most vulnerable points, such as over windows and doors.
The loadbearing internal lintel from Birtley is hot-dip galvanised after its been fabricated, which provides 50% more zinc protection than other approved coatings. This leaves every surface with plenty of rust protection to make sure it lasts even longer. A standard duty box lintel can also be used for decorative purposes.
Installation Requirements;
1. Bed fully on bricklaying mortar.
2. Must be used with a cavity tray - External walls only.
3. 150mm Minimum end bearing.

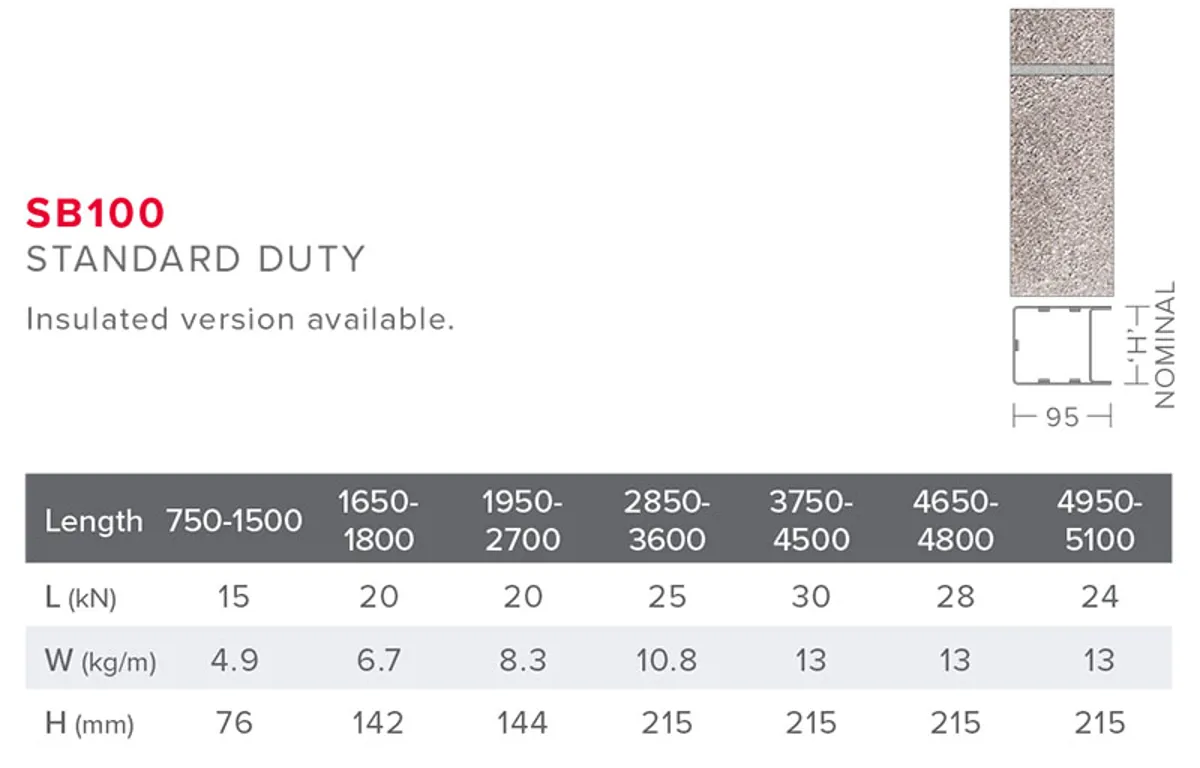

Specifications
|
Available Sizes
|
900 - 3000 mm
|
|
Brand
|
Birtley
|
|
Cavity Size
|
100 mm
|
|
Depth
|
95 mm
|
|
Finish
|
65 µm Hot Dip Galvanized
|
|
Fire Rating
|
60 mins (with 2 coat plaster finish)
|
|
Height
|
144mm
|
|
Inner Leaf
|
100mm
|
|
Lintel Type
|
Box Lintel
|
|
Load
|
Standard Duty
|
|
Material
|
Mild Steel S275JR to BS EN10025-2:2004
|
|
Material Gauge
|
2mm
|
|
Model
|
SB100-2400
|
|
Product Type
|
Steel Lintels
|
|
Standards Met
|
BS EN 10025
|
|
SWL
|
20kN
|
|
Weight
|
19.98kg
|
