Description

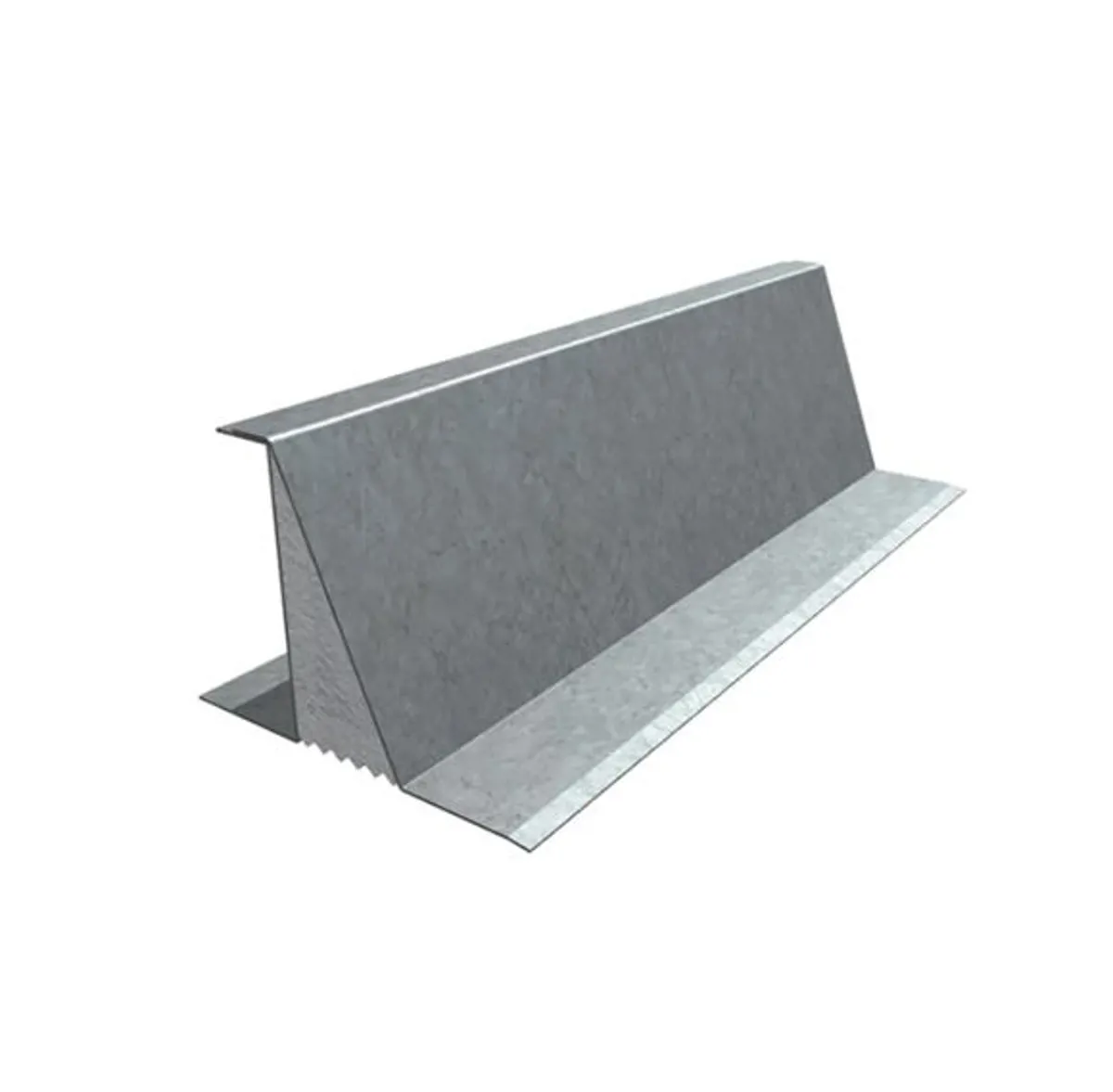

Make sure your next build stays strong and supported with the Birtley cavity lintel. Ideal for use between two layers of bricks or blocks, this cavity wall lintel creates a space between the structure and safely carries the distributed load of brickwork. Whether you’re adding an extension or constructing a house, it’s an essential.
The Birtley HD90 heavy duty cavity lintel is hot-dip galvanised after fabrication, which gives it 50% more zinc protection than other approved coatings. That means this is a lintel that will really last. You can also expect to see an improvement on SAP default value in thermal bridging, which will help to prevent energy loss and lower your heating and electricity bills.

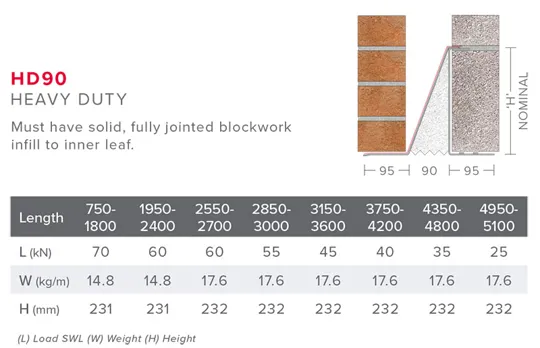

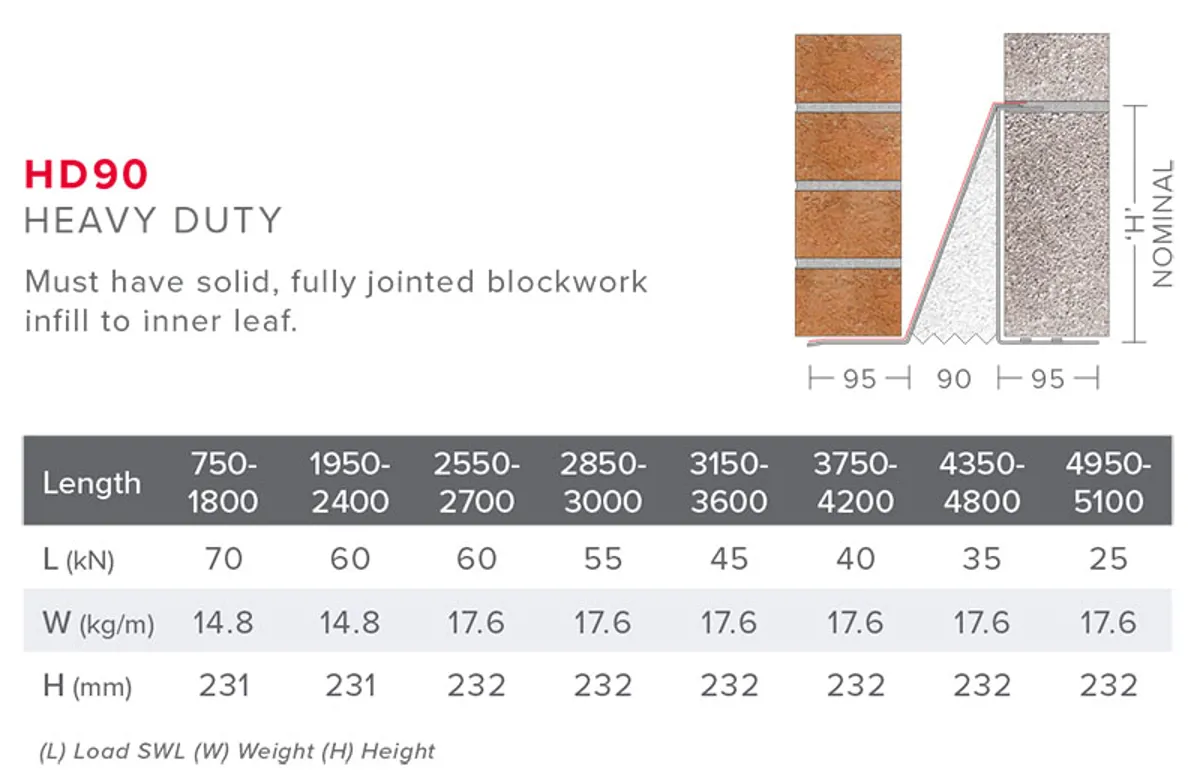

Specifications
|
Available Sizes
|
1200 - 4800mm
|
|
Brand
|
Birtley
|
|

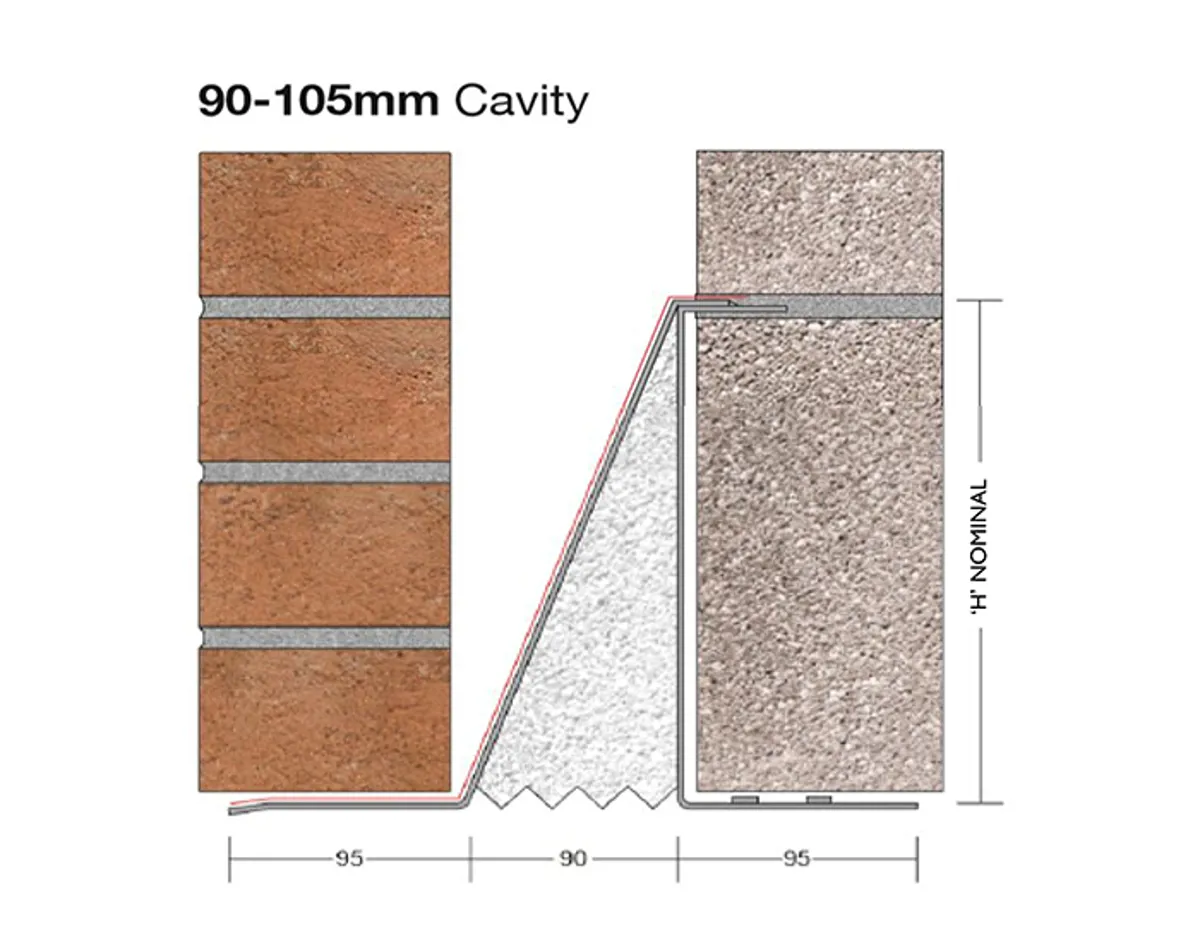

Cavity Size
|
90 - 105 mm
|
|
Depth
|
280 mm
|
|
Finish
|
65 µm Hot Dip Galvanized
|
|
Fire Rating
|
60 mins (with 2 coat plaster finish)
|
|
Height
|
232mm
|
|
Inner Leaf
|
100mm
|
|
Insulation
|
Expanded Polystyrene - BREEAM rating A+
|
|
Lintel Type
|
Cavity Wall Lintels
|
|
Load
|
Heavy Duty
|
|
Material
|
Mild Steel S275JR to BS EN10025-2:2004
|
|
Model
|
HD90-3300
|
|
Outer Leaf
|
100 mm
|
|
Product Type
|
Steel Lintels
|
|
Standards Met
|
BS EN 10025
|
|
SWL
|
45kN
|
|
Wall Construction
|
Cavity Wall
|
|
Weight
|
58.08kg
|
|
Weight Per Metre
|
17.6 kg/m
|
