Description
Tool supplied as Body Only - no Batteries or Chargers
The Milwaukee M18 FUEL™ FTR Trim Router is a high-performance cordless routing solution designed for professional joiners, carpenters, and woodworking trades. Powered by Milwaukee's advanced POWERSTATE™ brushless motor, it delivers corded-level performance with speeds of up to 31,000 rpm, providing smooth, precise cutting across a wide range of trimming, profiling, edge-forming, and detailed routing applications.
Featuring a variable speed control dial with a range of 10,000-31,000 rpm, the router can be accurately matched to different materials and cutting tasks for maximum control and finish quality. An innovative depth adjustment system incorporates a 0.4 mm micro-adjustment mechanism, enabling highly precise cutting depth settings, while the active brake rapidly stops the cutter for increased safety and productivity.
The router accepts both 6 mm and 6.35 mm (1/4) router bits and offers up to 50 mm of plunge capacity for added versatility. Dual LED work lights provide clear visibility of the cutting area, while compatibility with dust extraction systems helps maintain a cleaner working environment.

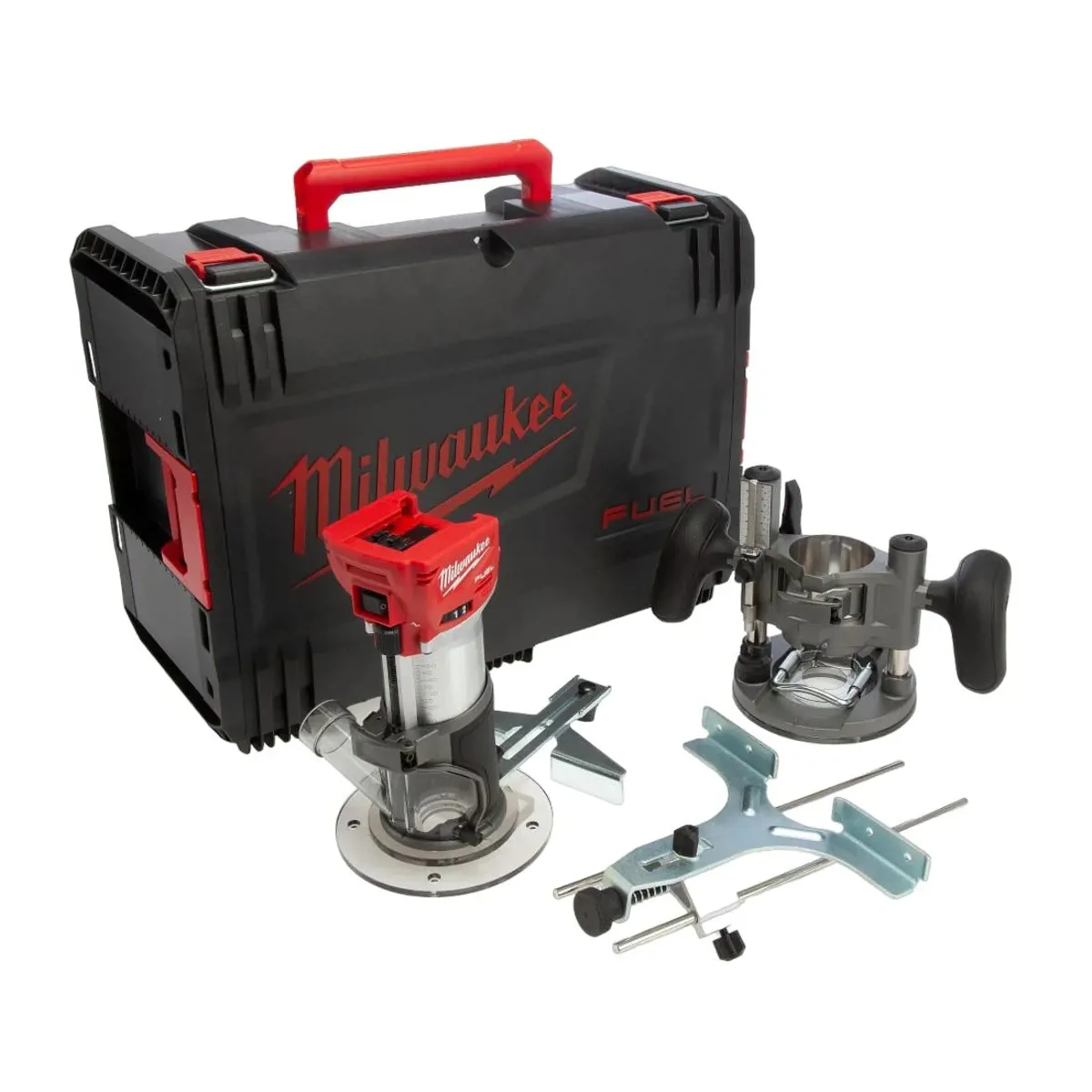

Supplied in a durable Milwaukee HD Box carry case complete with plunge base, two side fences, two dust extraction attachments, a 146 mm sub-baseplate compatible with 31.75 mm guide bushes, and both 6 mm and 6.35 mm collets. Supplied body only; batteries and chargers are sold separately.
Features
- POWERSTATE™ Brushless Motor delivers corded trim router performance with speeds up to 31,000 rpm for smooth, accurate cutting.
- Variable Speed Control allows adjustment from 10,000-31,000 rpm to suit different materials and applications.
- Excellent Runtime delivers all-day productivity, capable of routing up to 115 metres on a single M18™ 5.0Ah battery charge.
- Precision Height Adjustment features a 0.4 mm micro-adjustment system for accurate depth control.
- Active Brake quickly stops the router bit after trigger release for enhanced safety.
- 50 mm Plunge Capacity provides outstanding versatility for a range of routing and joinery tasks.
- Plunge Base Included features three depth-stop pins for efficient multi-pass mortising applications.
- Dual LED Work Lights illuminate the cutting area for improved visibility and precision.
- Dust Extraction Compatible works with DEK 26 dust collection systems to help keep workspaces clean.
- Accepts 6 mm and 6.35 mm (1/4) Router Bits for compatibility with a wide range of accessories.
- REDLINK PLUS™ Intelligence optimises performance while protecting the tool and battery from overload.
- Part of the Milwaukee FUEL™ System combining POWERSTATE™, REDLITHIUM™, and REDLINK PLUS™ technologies for exceptional power, runtime, and durability.
- Flexible Battery System compatible with all Milwaukee® M18™ batteries.
Specifications
|
Batteries in Pack
|
0
|
|
Battery Chemistry
|
Li-Ion
|
|
Battery Power
|
5 Ah
|
|
Battery Technology
|
M18
|
|
Brand
|
Milwaukee
|
|
Brushed or Brushless
|
Brushless
|
|
Collet Capacity
|
6 / 6.35 mm
|
|
Model
|
M18FTR-0X
|
|
No Load Speed
|
10,000 - 31,000
|
|
Noise Level
|
91.02 dB(A)
|
|
Noise Level K Factor
|
3 dB(A)
|
|
Plunge Capacity Plunge
|
50 mm
|
|
Power Supply
|
Cordless
|
|
Power Voltage Supply
|
18 V
|
|
Product Type
|
Router / Trimmer
|
|
Speed Control
|
6 speed selector
|
|
Switch Type
|
Variable Speed Trigger
|
|
Vibration
|
0.88 M/S²
|
|
Vibration K Factor
|
1.5 m/s²
|
|
Weight
|
2.1kg
|
